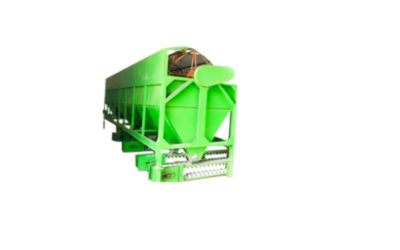

RAW CASHEW NUTS CALIBRATION 2500CAHN


  • FOB Hochiminh, Vietnam Unit Price : 38,336 USD
  • Cargo code : 2500CAHN
  • Size : (L*W*H) 12.0m*2.0m*5.0m
  • Electric consumption: 6kwh/3 phases/380V
  • Capacity : 2500 kgs/hour
NoIngredientQntContent
1Supplying material conveyor1
unit		Frame made by
Box Steel 30mm
*60mm,1.5mm
thickness
Bucket made
by plastic
2Stone sifting1 unit     Frame made by Box Steel 40mm*80mm, 2mm thickness.  Screen mesh surface made by steel SS400, 3mm thickness
3Calibration Feeding Material Bucket  1
unit		Bucket Body made by steel 2mm thickness
4Material funnel1
unit		– Funnel frame made by V4, 4mm thickness
– Funnel wall made by steel sheet SS400, 2 mm thickness
5Sucking fan1
unit		-Propeller  made by Steel
-Motor 2 HP made in Autralia
– Material cleaner function
6Material funnel (Pre- Stone sifting)1
unit		-Size ( L*W*H) 1m*1m*1m
– Funnel wall made by steel sheet SS400, 2 mm thickness
– Funnel frame made by Box Steel 40mm*40mm, 1.8 mm thickness
7Electric cabinet1
unit		Electric control center . Made in Vietnam

Cargo decription :

  • Seven raw cahew nut  output grades : A+ – A1 –A2 –B1 –B2 –C –D
  • Diameter of grid hole :17mm ( C-D) , 18mm ( C) , 20mm ( B1 –B2), 22mm (A2), 24mm ( A1), Over( A+)
GradeA+A1A2B1
Content3 tons3 tons3 tons3 tons
GradeB2CD
Content3 tons3 tons3 tons

  • Rubber pivot (Φ60mm) is along the calibration to clean grid hole
  • Calibration Pivot with diameter’s 140 mm, 8mm thickness
  • Calibration is octagonal ( 8 edges), each edge is 45cm length, 5mm thickness
  • Inverter WALGXYNG branding, 5 HP, made in Taiwan
  • Calibration frame made by I200 steel
  • Calibration Screen mesh surface made by SS400 stel, 5mm thickness
  • Reducer Motor made in Australia
  • HS code : 84378059
